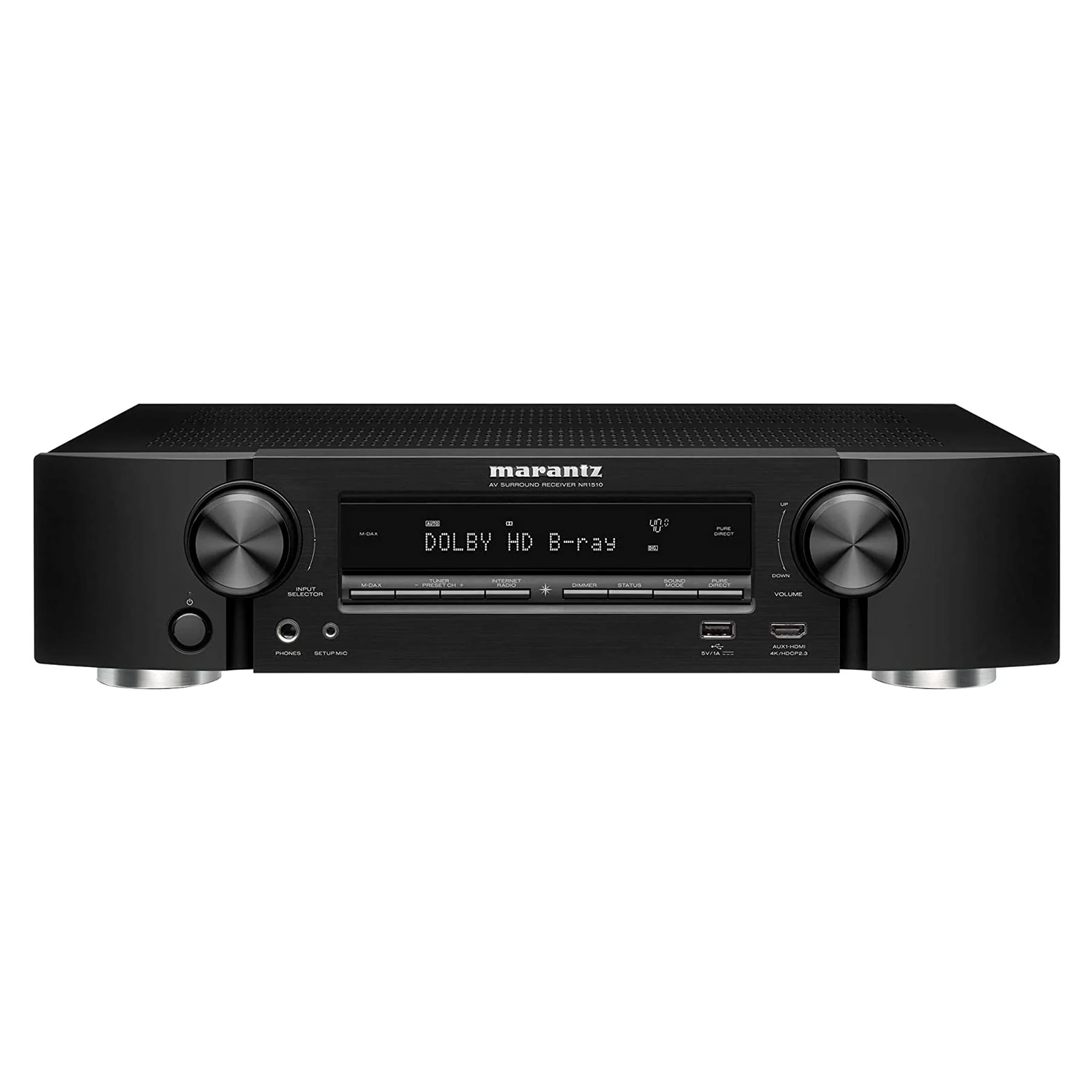

Marantz: NR1510 Slim AV Receiver

📌LAB POINTS

• versatile, slim profile receiver from revered hi-fi manufacturer w/ multiple inputs for a variety of A/V sources
• dedicated MM phono input
• 5-channel discrete power amplifier, 50W per channel
• slim profile, half the height of a traditional AV receiver
• Wi-Fi + Bluetooth integration for streaming Spotify, Pandora, Tidal + more; output to Bluetooth headphones
• 4K Ultra HD support

• 5 separate speaker terminal pairs
• hands-free operation w/ Amazon Alexa, Google Assistant or Apple Siri
• multi-room audio playback w/ HEOS app
• front-panel USB input

"Enjoy the most musical performance from a compact, slim chassis. At half the height of a traditional AV receiver, the Marantz NR1510 delivers the musical sound that’s synonymous with Marantz. Featuring a high-current discrete power amplifier section, enjoy elevated sound for movies and music with identical power on all five channels (50W per channel) with low-impedance drive capability for superb speaker control." - Marantz

🔎TECH SPECS

• power output (8 / 4 ohms RMS): 60W / 80W

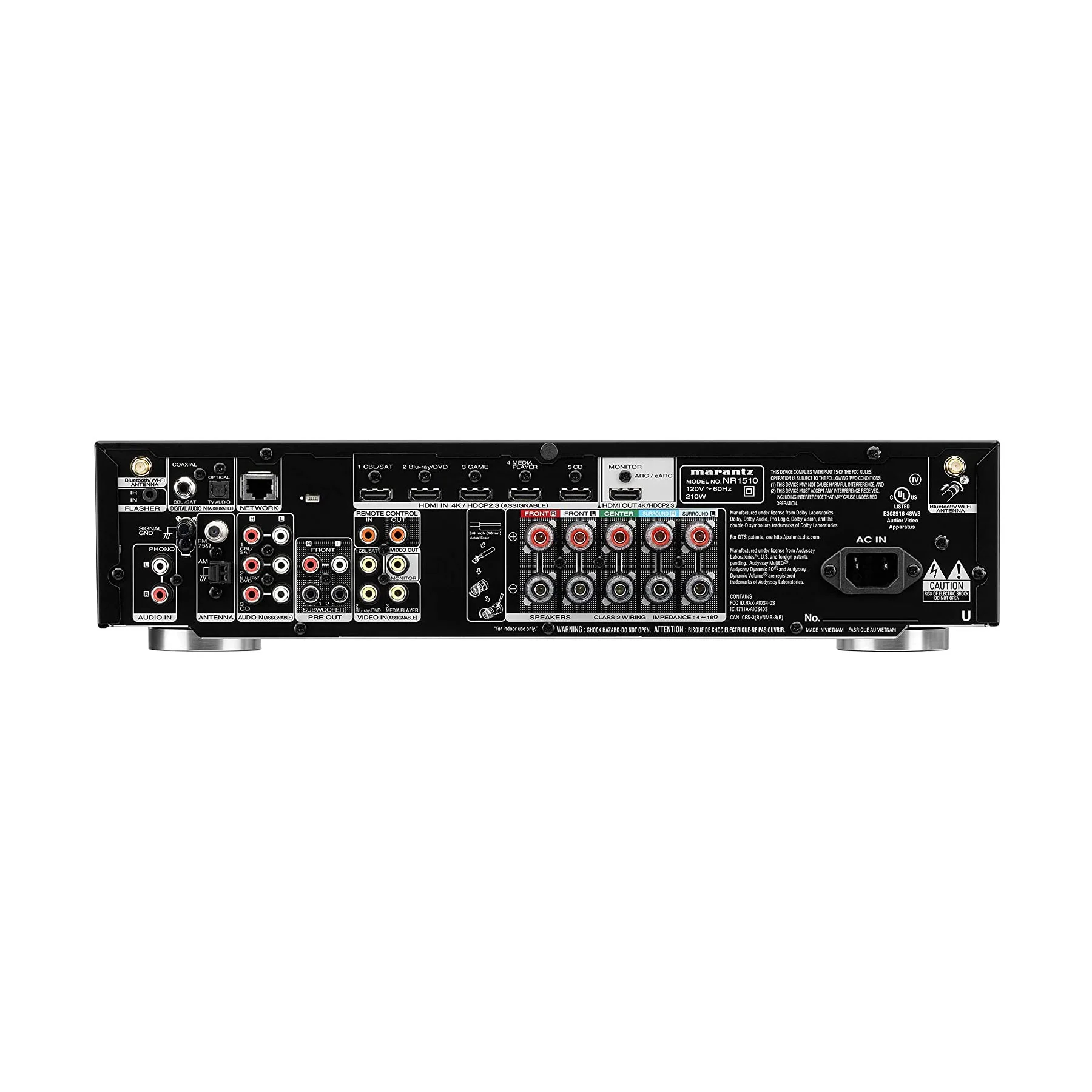

• input: Bluetooth, Wi-Fi, 6x HDMI, 3x RCA composite, 4x stereo RCA, 1x stereo phono RCA w/ ground screw, 1x optical TOSlink, 1x coaxial, 1x USB, 1x Ethernet
• output: 5x binding post speaker terminal pairs, 1x HDMI, 1x RCA composite, 1x stereo RCA pre-out, 2x RCA sub pre-out, 1x 1/4" headphone out,
• frequency response: 10 Hz to 100 kHz +1/-3 dB (Direct Mode)

• signal to noise ratio: 98 dB (line) / 74 dB (phono)

• dimensions (without antenna): 17.3 x 4.1 x 14.5" / 439 x 104 x 368 mm

• weight: 18.1 lb / 8.2 kg

.
