Pro-Ject: Phono Box E BT 5 (Phono Preamp + Bluetooth Transmitter)

📌LAB POINTS

• adds wireless Bluetooth 5.2 connectivity to any turntable
• converts analog source to digital + transmits / streams to any Bluetooth device (i.e. BT headphones, speakers, receiver)
• built-in phono preamp (MM) + line level input/output
• fast pairing w/ up to 10 meter (~30 ft) range
• internal metal shielding protects against vibrations + radio interference
• gold plated RCA connectors


"Easily add Bluetooth connectivity to any turntable (with MM cartridge) or line level source for wirelessly streaming to Bluetooth headphones, speakers, or receivers." - TTL

🔎TECH SPECS

• Phono input impedance: 47k ohms
• Phono capacitance: 100pF
• Phono gain: 34dB

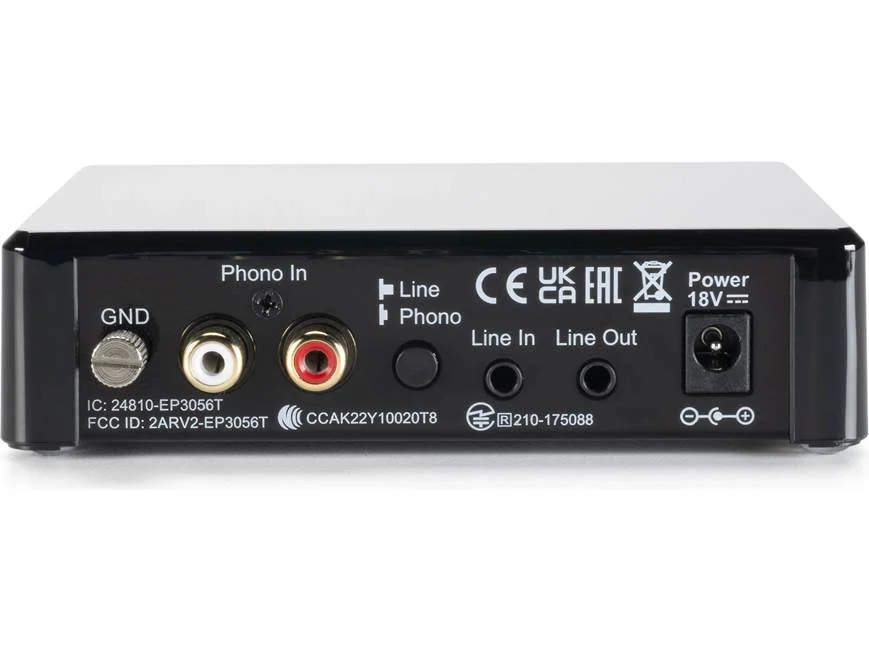

• Inputs: 1x phono (RCA), 1x line (3.5mm, 1/8″)
• Outputs: 1x line (3.5mm, 1/8″), 1x Bluetooth
• Noise floor: 74dBA (A-weighted)
• THD: <0.04%
• Phono/line max. input voltage: 800mV
• RIAA equalization curve accuracy: within 0.5dB (20Hz-20 kHz)
• Bluetooth: V5.2, aptX, aptX Adaptive, aptX HD
• Outboard power supply: 18 V/500mA DC
• Power consumption: 200mA DC
• RIAA EQ CURVE ACCURACY: 0.5 dB/20 Hz - 20 kHz
• DIMENSIONS: 4.7" x 1.26" x 3.9" / 120 x 32 x 100mm
• WEIGHT: 0.62 lbs / 280g

📦COMES WITH

• power supply

.
